1hr Fire Rated Door
Tufwud 1hr fire rated door are built with high-quality materials. These fire door save you from fire for 1 hour. Choosing the right fire door for your home, offices, and hospitals can give you peace of mind and the safety of your property.
Fire Resistant Doors work well as partitions, dividing a fire and giving residents more time to safely flee. Tufwud fd60 fire door are ISO-certified usually marked “FD-ID” with fire rating labels indicating their resistance to fire. These ratings, such as 60-minute specify their ability to withstand fire, heat, and insulation. It aids in containing fires and can withstand heat for at least an hour before disintegrating. Selecting the ideal 1hr fire rated door Manufacturer for residential and commercial buildings is a crucial choice.

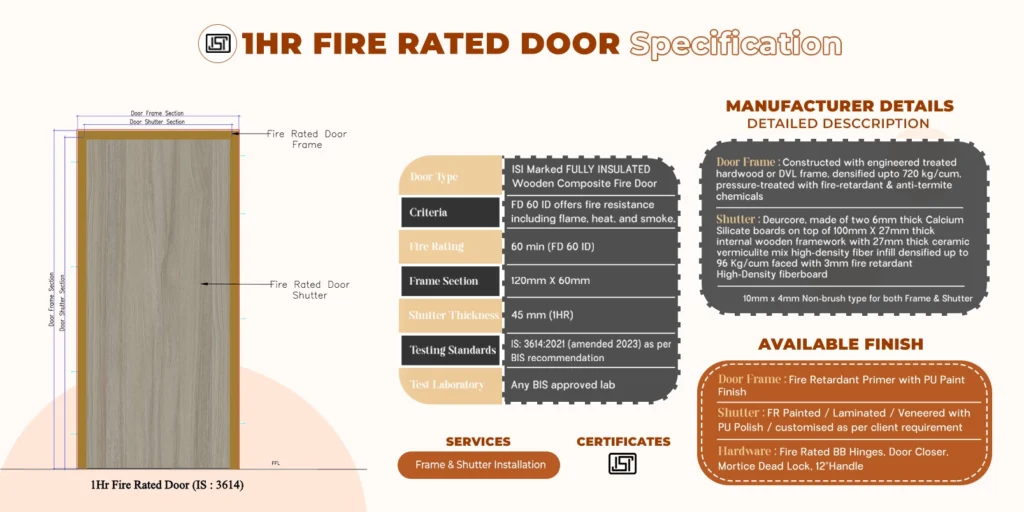

Fully Insulated wooden composite fire door - FD60ID
FD60ID - 60 MIN OF INSULATION
- 60 minutes fire resistance door system for both integrity and insulation criteria, as per the standards of IS: 3614:2021 (amendment 2023) and BS: 476 part 22.
- Made of non-combustible materials, using the NCBN technology, which do not contribute to the fire or produce any toxic fumes or smoke.
- Tested under the standard heating conditions as specified in IS 17518 (Part 1), to verify the fire performance of the door to restrict the heat radiation and temperature rise on the non-fire side to a maximum of 140° C above the ambient temperature on the exposed surface of the shutter, during the fire test.
- Manufactured from engineered treated hardwood or DVL (Densified Veneer Lumber) with a density of 810 kg/cum.
- Pressure treated with fire retardant chemicals in a vacuum impregnation vessel under 160 psi pressure, as per IS:401 standard.
- Kiln seasoned to reduce the moisture content below 15%, as per IS:1141 standard.
- Section size 120mm x 60mm, spray coated with two coats of intumescent paint of minimum 100-micron thickness.
- Single row of non-brush type intumescent strip of size 10mm x 4mm affixed in the slit of the frame for fire and smoke sealing.
- 45mm thick and asbestos free asbestos free – Integrity and Fully Insulated, with fire performance of FD 60 ID as per IS:3614:2021 (amendment 2023) standard.
- The core is made of Deurcore, consisting of two layers of 6mm Calcium Silicate boards over a chemically treated internal timber framework of 100mm X 27mm.
- Internal timber framework made of engineered treated hardwood or DVL (Densified Veneer Lumber) with a density of 810 kg/cum, and is pressure treated with fire retardant chemicals in a vacuum impregnation vessel under 160 psi pressure, as per IS:401 standard. Also kiln seasoned to reduce the moisture content below 15%, as per IS:1141 standard.
- The infill made of 27mm thick ceramic fibre (density 96 Kg/cum) and vermiculite mix, which provides insulation and fire resistance.
- Faced with 3mm fire-retardant high-density fibre board, and is internally lipped with hardwood beading.
- Pasted in hydraulic press under 25 MPa pressure, spray coated with two coats of intumescent paint of minimum 100-micron thickness.
- Single row of non-brush type intumescent strip of size 10mmx4mm affixed on the periphery for fire and smoke sealing in the slit on all edges of the shutter except the bottom, without any external lipping.
- Integrated into the door shutter structure, allowing visibility and light transmission.
- Made of high-stress fire rated glass to withstand fire for one hour and has an E Class rating, to prevent the passage of flames and smoke.
- Pre-fabricated and strategically placed inside the shutter structure with fire-resistant U-glazing strips, to prevent heat transfer and maximize functionality.
Call us today for some special discounts !
842-0050-754
sales@tufwud.com
Kolkata | Mumbai | Gurgaon
India
Monday - Saturday
9:00 - 19:00
Get A Quick Quote
Fire Door
Tufwud Doors and Accessories Pvt Ltd strives to be the best Fire doors manufacturers in India. Unlike Partially insulated or uninsulated fire doors, which act as a hindrance during fire accidents, ISO-Certified Tufwud doors are usually marked “FD-ID” with fire rating labels indicating their resistance to fire. These ratings, such as 60-minute, or 90-minute, 120 minutes specify their ability to withstand fire, heat, and insulation. It’s essential to install insulated fire door doors with the appropriate fire rating based on the building’s occupancy, size, and fire safety requirements.
Fire doors serve as effective barriers, compartmentalizing fire and allowing occupants more time to escape safely. Fire doors are equipped with intumescent seals, which expand when exposed to heat, creating a tight seal and preventing smoke infiltration.
Additionally, their self-closing mechanisms ensure they remain closed during a fire, limiting the oxygen supply to the flames.
Here are some of the benefits of using Tufwud fire doors:
- Fire protection: Tufwud fire doors help protect people and property in the event of a fire. They are designed to withstand high temperatures and flames for an extended period of time, giving people enough time to evacuate safely.
- Smoke containment: Tufwud fire doors can also help to contain smoke in the event of a fire. This prevents choking hazards, the spread of fire and improves visibility during an evacuation.
- Compliance with codes and regulations: Tufwud fire doors are designed to meet or exceed all applicable local and national codes and regulations. This ensures that they are actually functional and effective in the event of a fire.
Tufwud fire doors are a great choice for a variety of applications, including:
- Commercial buildings: Tufwud fire doors are ideal for commercial buildings, such as offices, hotels, and hospitals. They can help to protect people and property in the event of a fire.
- Educational institutions: Tufwud fire doors are also a good choice for educational institutions, such as schools and universities. They can help to protect students and staff in the event of a fire.
- Healthcare facilities: Tufwud fire doors are also a good choice for healthcare facilities, such as hospitals and nursing homes. They can help to protect patients and staff in the event of a fire.
- Residential buildings: Tufwud fire doors can also be used in residential buildings, such as homes and apartments. They can help to protect families and pets in the event of a fire.
If you are looking for a safe and reliable fire door solution, Tufwud fully insulated fire doors are a great option. They are manufactured as per order and finished to match the décor of any building and give a warranty of 1 year.
Tufwud is an ISO certified Pan India operational 70 years old, Tier 1 manufacturer and seller of Architectural doors, fire doors, acoustic fire doors, lead lined doors and laminated doors.
Tufwud is a fully backward and forward integrated organization with decades of knowledge and experience. Tufwud doors are made in India and have a deep operational presence in the geographies it operates. Tufwud is a reliable, experienced, and committed vendor of top Builders, Contractors, Architects, Hotels and Hospitals for their Door requirements. Tufwud’s products are Lab Tested, Govt Certified, and Functional. These Doors and Partitions are Customized to match the Interior theme. These architectural doors are modular, environment friendly, easy to install and maintenance FREE. Tufwud doors are premium yet affordable.
